Located in Gainesville, Florida, the KC4MHH DMR Repeaters are "open" repeaters operating on 444.8375 (449.8375 input) and 146.640 (146.040 input), both are Color Code 1 and are available to all amateurs. The DMR Repeaters are connected to the BrandMeister Network. Pi-Star.UK presently lists well over 1,500 BrandMeister talkgroups, but there are indeed many more than this and all are available for you to use. Both repeaters are located high atop the WCJB-TV tower in Gainesville at 550 and 620 feet.

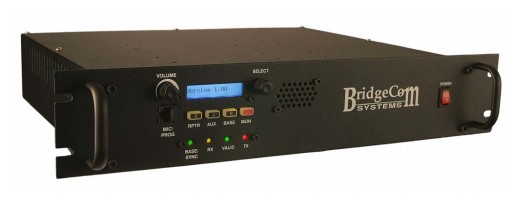

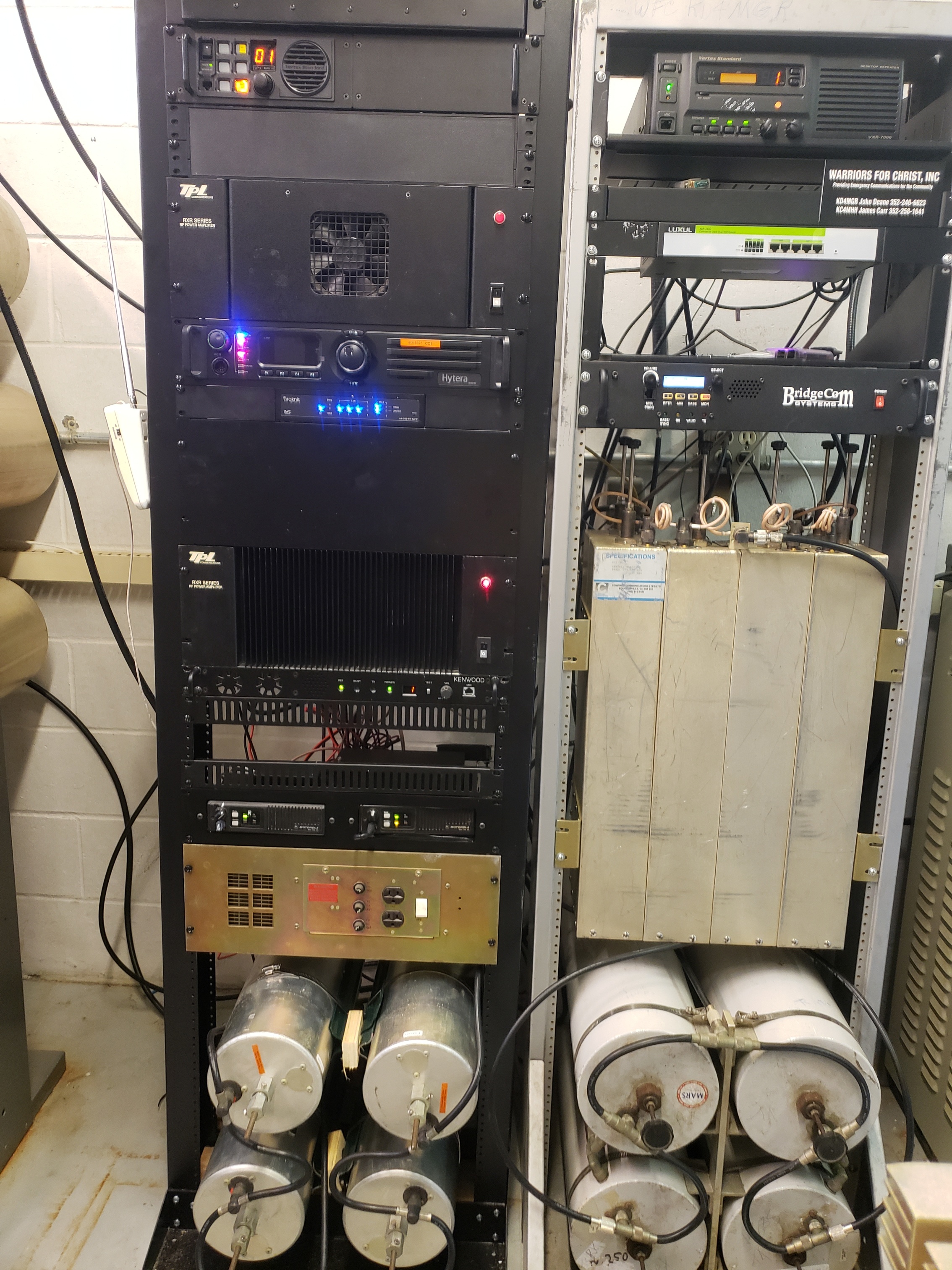

The VHF DMR repeater system consists of a Bridgecom BCR-50V Repeater (50 watts), a STM32 DVM MMDVM digital interface feeding a Comprod 66-13-46 duplexer and Sinclair SD214 4-Bay Dipole antenna.

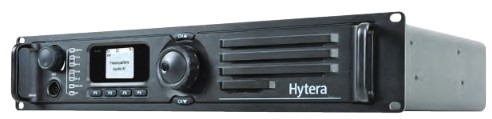

The UHF DMR repeater system consists of a Hytera RD982i repeater, TX/RX Combiner and an Andrews DB420-B antenna.

Building your own Hytera RD982i? Check out my Hytera Build Page for hints and programming for the Hytera. Many thanks to Terry Gillard, NX7R, for his expert help in getting the repeater on the air.



The repeaters are available to support local emergency services including Alachua County Emergency Management and the American Red Cross Disaster Services. When needed, they can be immediately reverted to conventional analog operation.



Our Repeaters presently have several "Static" (always on) talkgroups:



444.8375 UHF Repeater (Color Code 1):
   TS1  3100  USA Nationwide
   TS1  3112   Florida Statewide
   TS1  31227 Florida State ARES
   TS1  3199   Hurricane Network
   TS2  312558 GNV 1
   TS2  312571 GNV 2
   TS2  312812 GNV 3
   TS2  31012 QuadNet Scheduled Net - Hotspot, Raspberry Pi Net - Monday's from 1600-1900
   TS2  31012 QuadNet Scheduled Net - Multi Mode Voice Net - Saturday's from 1600-1900
   TS2  31012 QuadNet Scheduled Net - Ham Nation After Show - Wednesday's from 2200-0100



146.640 VHF Repeater: (Color Code 1)
   TS1  3199   Hurricane Network
   TS1  31127 Florida State ARES
   TS1  5002021 TGIF Free Speech
   TS2  312558 GNV 1
   TS2  312571 GNV 2
   TS2  312812 GNV 3
   TS2  31229 ArkLaTx (My sister,Vickie,KF4LAF,lives in Shreveport,LA)



"Local 9" on time slot 2 is recommended for local conversations unless you need to communicate with someone who is on another repeater or a hotspot. Please note that any talkgroup less than 80 is LOCAL TO THAT REPEATER ONLY. You will not be able to access from another repeater or hotspot. During emergencies, I can remotely alter these to remove the routine "chat" groups and replace them with needed groups such as the "Florida Statewide", "Florida ARES", "NE Florida ARES", and other talkgroups as needed by emergency and relief organizations.



All other groups are "dynamic" in nature. This means you can activate them by simply keying up on that talkgroup. It will now be active until either replaced by another dynamic, disconnected (using TG 4000), or times out after 15 minutes of no local activity (This is setup by BrandMeister).



If you find there is an interest for one of the available scheduled nets, let me know. I can add a schedule that will make that talkgroup "static" just prior to net time and will end 3 hours later. Scroll down to the bottom of this web page for a list of some available nets.



The 146.640 VHF Repeater is one of the first repeaters in the nation to be "dual network" capable. This means that in addition to access to the BrandMeister Network, it now has access to the TGIF Network as well! In order for this to be accomplished, there needed to be some additional "rules" that allow the repeater (and your radio) to distinquish between BrandMeister and TGIF. When programming your radio for TGIF talkgroups, convert the existing talkgroup into a 7 digit talkgroup (padding the front of the talkgroup with "5" and "0" to create the new talkgroup. For example: TGIF talkgroup "9990" (Parrot) will become "5009990", TGIF talkgroup "110" (North America) will become "5000110" and so on... You will note that TGIF Free Speech Radio (talkgroup 5002021) is now static on TS1.



Additional DMR Repeaters in Gainesville



The Gainesville Amateur Radio Society (GARS) operates a VHF DMR Repeater, also on the BrandMeister Network, using a BridgeCom BCR-50V Repeater (50 Watts) at about 175' on the WUFT-TV Tower.
146.685 VHF Repeater (Color Code 1):
   TS1  91    World Wide
   TS2  312558 GNV 1
   TS2  312571 GNV 2
   TS2  312812 GNV 3

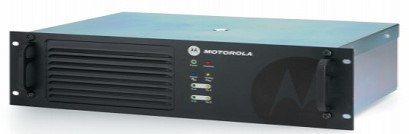

The Gator Amateur Radio Club (GARC) at the University of Florida, operates a UHF DMR Repeater on the MARC (https://k4usd.org) Network, using a Motorola Repeater.
It is unknown if any are set as "Static" talkgroups. This repeater is a member of the FDARN Network (Florida Digital Amateur Radio Network - FDARN.Com) and provides some unique talkgroups unavailable on the other repeaters.
444.8125 UHF Repeater (Color Code 1):
Static talkgroups are:

   TS1  3          North America
   TS1  9          Local Repeater Use Only
   TS2  2          F-DARN Repeater System
   TS2  3112     Florida Statewide
   TS2  3174     South East Region


PTT (Dynamic) talkgroups are:

   TS1  1          World Wide
   TS1  13        World Wide English
   TS1  310       TAC 310
   TS1  311       TAC 311
   TS2  3113      Georgia Statewide
   TS2  3125      Massachusetts Statewide
   TS2  3139      Ohio Statewide
   TS2  3100      Nationwide
   TS1  8801     FDARN TAC 1
   TS1  8802     FDARN TAC 2
   TS1  8803     FDARN TAC 3
   TS1  8804     FDARN TAC 4
   TS1  8805     FDARN TAC 5
   TS1  8806     FDARN TAC 6
   TS2  8951      TAC 1
   TS2  1776     USA Nationwide
   TS2  113      UA English 1
   TS2  123      UA English 2
   TS2  9998     Parrot
   TS2  9999     NoCal Audio Test

Ham Radio Videos and Tutorials



View our Plex server to learn more about amateur radio including many of the more in depth technical subjects. If you are in the process of building or maintaining a repeater system, there are some excellent videos demonstrating how to properly tune your duplexers. There are several ways to view.

     1. Go to "http://plex.tv" on your browser

     2. If you have a "smart tv" (Roku, etc), add the PLEX app to your lineup.

     3. Add the PLEX app to your phone or tablet

Now that you have access to PLEX, just log in!

     Username: KC4MHH

     Password: Repeater64



Finding Active Talkgroups



Want to know when different talkgroups are active? Go to BrandMeister Hoseline. You can view all of the active talkgroups, who is talking, and even click on the talkgroup to listen from your computer. Remember that all of the Brandmeister talkgroups are available to you, so it is as simple as programming the talkgroup into your radio (some radios allow you to do this "on the fly" from a menu - see your radio's operation manual for details).



Programming Your DMR Radio



The following information will assist you with programming your DMR radio for use with our repeater:



Assuming you have already obtained your DMR ID (if not, go to RadioID.net and register), you need to download the entire Brandmeister talkgroup list from the Pi-Star Download Page.



As there are many different DMR radios on the market, each with their own software, I will provide here some very general information. I will try to provide some "generic" downloads for various models that I have programmed to make it easier for you to get on the air quickly. As I have the opportunity to program different models, I will create a template that will be available on this page for you to download. For the Anytone radios, there are templates for other areas on the Bridgecom Systems website.



In your "general" settings, you will enter your "Radio Name" (usually your call sign) and Radio ID (the number you obtained when you registered on RadioID.Net).



Most radios are able to import from csv files, so at this time, import the Digital Contacts or Talkgroups from the file you downloaded earlier from Pi-Star.



In your "Channel Information", program each of your "channels". Unlike your analog (conventional repeater) channels, DMR channels are a combination of the repeater frequency, talkgroup, and color code (the DMR equivalent to a CTCSS in analog). Here is how I have mine programmed for each "channel". This is an example for EACH REPEATER OR HOTSPOT. If you are programming your radio for multiple repeaters and/or hotspots, you will need to repeat these entries for each repeater you are using.



MODE  CHANNEL NAME  RX FREQ  TX FREQ  ADMIT  TALKGROUP  COLOR  SLOT  CTCSS

Digital  USA 3100 (3100)  444.8375  449.8375  Always  3100  none
Digital  Parrot  444.8375  449.8375  Always  9990  none
Digital  QuadNet  444.8375  449.8375  Always  31012  none
Digital  ArkLaTx  444.8375  449.8375  Always  31229  none
Digital  Florida Statewide  444.8375  449.8375  Always  3112  none
Digital  Local 9  444.8375  449.8375  Always  none
Digital  GNV 1  444.8375  449.8375  Always  312558  none
Digital  GNV 2  444.8375  449.8375  Always  312571  none
Digital  GNV 3  444.8375  449.8375  Always  312812  none
Digital  TAC 310  444.8375  449.8375  Always  310  none
Digital  TAC 311  444.8375  449.8375  Always  311  none
Digital  TAC 312  444.8375  449.8375  Always  312  none
Digital  TAC 313  444.8375  449.8375  Always  313  none
Digital  TAC 314  444.8375  449.8375  Always  314  none
Digital  TAC 315 444.8375  449.8375  Always  315  none
Digital  TAC 316  444.8375  449.8375  Always  316  none
Digital  TAC 317  444.8375  449.8375  Always  317  none
Digital  TAC 318  444.8375  449.8375  Always  318  none
Digital  TAC 319  444.8375  449.8375  Always  319  none
Digital  TAC Florida  444.8375  449.8375  Always  31120  none
Digital  Florida First Coast  444.8375  449.8375  Always  31121  none
Digital  Florida West Coast  444.8375  449.8375  Always  31122  none
Digital  Florida Treasure Coast  444.8375  449.8375  Always  31123  none
Digital  Southeast Florida  444.8375  449.8375  Always  31124  none
Digital  World Wide  444.8375  449.8375  Always  91  none
Digital  North America  444.8375  449.8375  Always  93  none
Digital  Scheduled Nets 1  444.8375  449.8375  Always  31001  none
Digital  Scheduled Nets 2  444.8375  449.8375  Always  31002  none
Digital  Hurricane Net  444.8375  449.8375  Always  3199  none
Digital  Florida ARES  444.8375  449.8375  Always  31127  none
Digital  NE Florida ARES  444.8375  449.8375  Always  31128  none
Digital  EMCOM US  444.8375  449.8375  Always  9911  none
Digital  North Florida RACES  444.8375  449.8375  Always  31675  none
Digital  Southeast Region  444.8375  449.8375  Always  3174  none
Digital  Gulf Coast  444.8375  449.8375  Always  31011  none
Digital  1776 USA  444.8375  449.8375  Always  1776  none
Digital  AllStar Net  444.8375  449.8375  Always  3167  none
Digital  QuadNet Weather  444.8375  449.8375  Always  31680  none
Digital  Weather  444.8375  449.8375  Always  31774  none
Digital  Tornado  444.8375  449.8375  Always  31991  none
Digital  GNV 1  444.8375  449.8375  Always  312558  none
Digital  GNV 2  444.8375  449.8375  Always  312571  none
Digital  GNV 3  444.8375  449.8375  Always  312812  none



Of course, you can taylor this list of talkgroups to your own personal taste. Feel free to add your favorites as all talkgroups are available as "Dyanamic" talkgroups (on BrandMeister networks). As such, once you key them up, they are active until replaced (someone activates another dynamic in it's placed) or a "Disconnect" talkgroup is keyed on that Repeater Slot. I also (even though I did not display them here) created channel for each of the 50 states and placed them in their own zone.



Own a hotspot? Think of it as your own personal, low powered, repeater. Programming for your radios is very similar, just change the frequencies.



Here is how to program in your analog channels:



Mode  Channel Name  RX Freq  TX Freq  Admit  Talkgroup  Color  Slot  CTCSS

Analog  146.850 KD4MGR  146.850  146.250  Always        123.0
Analog  147.270 KD4MGR  147.270  147.870  Always        123.0
Analog  444.9875 KC4MHH  444.9875  449.9875  Always        123.0
Analog  146.820 GARS  146.820  146.220  Always        123.0
Analog  146.985 GARS  146.985  146.385  Always        123.0
Analog  444.925 GARS SARNET  444.925  449.925  Always        123.0
Analog  146.740 Waldo  146.740  146.140  Always        123.0
Analog  146.910 UF  146.910  146.310  Always        123.0
Analog  146.520 Simplex  146.520  146.520  Always        none



You can create any number of these including duplicating these talkgroups on additional frequencies to cover other repeaters.



Once you have created your channels, it is time to organize these into groups or "zones". These "zones" are simply a group of channels, they can even be a mix of analog or digital and even give you the opportunity to organize them in any order you wish. You can even have the same channel appear in multiple zones.



Another option you have are "scan groups". These are also selected on a per channel basis as well as entered into the scan group category. The only limitation here is that a channel can only appear in one scan group, so unlike zones, it cannot be in multiple scan groups.



Some radios, such as the Anytone models, also sport a "Promiscuos Mode". This function allows you to monitor any talkgroup on a specific time slot or even both time slots, irregardless of what "channel" you have selected. Some radios call this function "digital monitor".



Another programming option you will have involves "programmable buttons" on your radio. Depending on your radio, these buttons can make selecting zones, power output, scan functions and digital monitor as easy as pressing a programmed button. Like many other features, the available functions can vary depending on manufacture and model of your DMR radio.



If your radio has the ability to display information about the users (their callsign, name, location), then you can obtain and download from the RadioID.Net database. Please keep in mind the capability of your radio. Some older radios might hold as few as 10,000 contacts where one of the newer radios (the latest Anytone D-878 HT) can hold over 500,000. The entire world database now sports over 200,000 registered DMR stations, so you may have to either use RadioID's custom download or manually remove stations from the downloaded CSV file prior to uploading it to your radio.





DMR Nets



There are many nets that you may listen to as well. I have created a few "scheduled static" entries to make listening to these easier. If you find a specific net that you think others would be interested in listening to on a regular basis, I will be willing to add this to the schedule. Of course, you can always bring up these nets manually on time slot 2 (remember, all talkgroups are available dynamically). Here is a list of just a few of these nets:



Day  Time (EST)  Talkgroup  Net Description

Sunday  1700  31012  QCWA D-Star Net
Sunday  1900  31012  Young Operators Digital Voice Net
Sunday  2000  310  TAC 310 Net
Sunday  2000  314722  Sunday Night Net
Monday  0000  310  Midnight Net
Monday  1800  31012  Ham Radio Rookies Net
Monday  2200  31012  Hotspot, Raspberry Pi, ZumSpot Net
Tuesday  1900  3162356  Absolute Tech Net
Tuesday  2000  31648  DMR Information Net
Tuesday  2000  31630  STEM Northstar Digital Net
Tuesday  2100  31281  East Coast IRLP Tech Net
Wednesday  1930  314722  Southeast Link TAG Multi-Mode Digital Net
Wednesday  2100  93  North America Tech Net
Wednesday  2100  31012  Amateur Astronomy Digital Voice Net
Wednesday  2200  31012  After Hamnation Net
Thursday  1930  3133  Skywarn DMR Net
Friday  2200  31513  Night Owl's DMR Net
Saturday  0900  91  BrandMeister Worldwide Net
Saturday  1000  31012  Medical Amateur Radio Council
Saturday  1600  31012  The Food Net
Saturday  1800  31012  Multi Mode Digital Voice Net



Site location courtesy of WCJB-TV. Use of antennas, combiners and the Hytera 982i (444.8375 DMR) courtesy of LadyComm.
